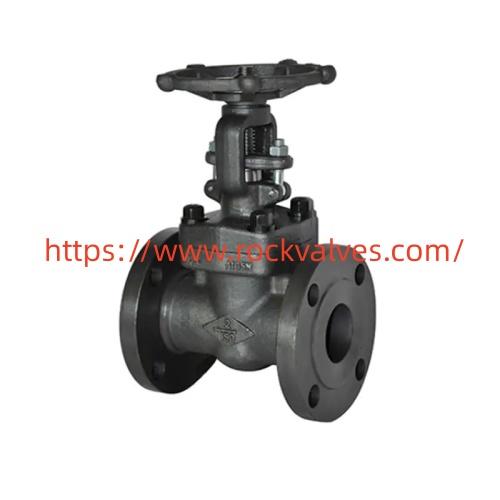

GB Standard Cast Steel Gate Valve selection begins with a clear review of the system pressure class and the expected temperature band. Operators first identify the maximum working pressure the line will see during normal and peak operation then compare that figure against the available nominal ratings such as PN10 PN16 or PN25. Matching these numbers prevents overloading the body and keeps sealing surfaces within design limits.

Temperature plays an equal role. Many industrial lines operate between roughly minus twenty nine degrees and four hundred twenty five degrees Celsius when handling water oil or steam. Confirming that the body material remains stable across this span reduces the risk of thermal expansion problems that can affect seat contact. Flexible wedge designs help accommodate modest expansion while solid wedges suit more constant conditions.

Media compatibility comes next. The fluid type influences both internal corrosion resistance and the choice of seating surfaces. Clean water systems allow simpler trim while oil or steam services benefit from harder facing that resists wear. Always verify that the packing material tolerates the fluid and the temperature so leakage at the stem stays controlled.

Connection style must also align with the existing pipeline. Flanged ends suit lines that may need later removal while welded ends suit permanent high integrity runs. Face to face lengths follow established tables so the unit drops into place without forcing adjacent piping. Checking the drawing for exact dimensions before order placement avoids field modifications.

Operation method deserves attention as well. Manual handwheel control works for infrequent isolation while gear or actuator options suit larger sizes or remote locations. The stem should rise freely and the handwheel should turn smoothly under the expected differential pressure. Testing the unit after installation confirms that the seats seal at both low and high pressure.

Material grade selection ties the pressure and temperature data together. Carbon grades handle general service within the common thermal band while alloy grades extend the upper limit when higher heat is present. Low temperature grades keep toughness when the process drops toward the lower end of the range. Reviewing the material certificate against the process data sheet confirms the match.

Installation orientation affects long term performance. Vertical stem upward placement remains the usual preference on horizontal lines because it allows full drainage and easier packing access. Horizontal stem placement is possible yet requires extra support to limit side load on the stem threads. Cleaning the pipe ends before assembly removes debris that could score the seats during first cycles.

Routine checks keep the unit serviceable. Periodic cycling prevents the wedge from sticking after long idle periods. Packing adjustment restores seal integrity when minor stem leakage appears. Visual inspection of the body exterior for external corrosion or flange seepage provides early warning. Recording each check creates a history that supports future maintenance planning.

Pressure testing after any major work verifies integrity. Shell tests at one and a half times the nominal rating and seat tests at one point one times the rating follow accepted practice. Results stay within the allowable leakage class for the service. Documenting the test pressures and durations completes the commissioning record.

When all these points line up the isolation component performs its open and close duty across the intended pressure and temperature window. Rockvalves supplies units that meet the dimensional and test criteria described above so plant teams can focus on process requirements rather than compatibility questions. Selecting the correct rating and material from the start reduces unplanned downtime and keeps fluid systems stable.
